7 Inch For 1024x600 HDMI Signal Lcd Display With Capacitive Touch Screen
General Description:
1.Package includes: 7 inch Touch LCD Display x1, HDMI cable x1, USB cable x1
2.Supports Raspbian, 5-points touch, driver free
3.Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
4.Supports Retropie, driver free
Specifications:
| Item of general information | Contents | Unit |
| LCD Display Size(Diagonal) | 7 | inch |
| LCD Display Type | TFT/TRANSMISSIVE | - |
| LCD Display Mode | Normally White | - |
| Recommended Viewing Direction | 12 | o’clock |
| Gray inversion Direction | 6 | o’clock |
| Module size (W×H×T) | 165.30×121.00×7.75 | mm |
| Active area (W×H) | 154.08×85.92 | mm |
| Number of pixels(Resolution) | 1024RGB×600 | pixel |
| Pixel pitch (W×H) | 0. 1506×0. 1432 | mm |
| Color Pixel Arrangement | RGB Stripe | - |
| LCD Driver IC | TBD | - |
| Module Interface Type | HDMI(Display)&USB(touch) | - |
| System Support | Android/Win7/Win8/Win10 | |
| Module Input voltage | 5.0V | V |
| Module Power consumption | TBD | mW |
| Color Numbers | 16.7M | - |
| Backlight Type | White LED | - |
Absolute Maximum Ratings:
| Parameter of absolute maximum ratings | Symbol | Min | Max | Unit |
| LCD supply voltage | VDD | -0.5 | 5.0 | V |
| Operating temperature | Top | -20 | 70 | ℃ |
| Storage temperature | Tst | -30 | 80 | ℃ |
| Humidity | RH | - | 90%(Max 60℃) | RH |
Ctp Characteristics:
| Item of CTP characteristics | Specification | Unit | Remark |
| Panel Type | Glass Cover + Glass Sensor | - | - |
| Resolution | 1024 × 600 | pixel | - |
| Surface Hardness | ≥6H | - | - |
| Transparency | ＞82% | - | - |
| Driver IC | TBD | - | - |
| Interface Type | USB | - | - |
| Support Points | 5 | - | - |
| Sampling Rate | 20~100 | Hz | - |
| Supply voltage | 3.3 | V | - |
Optical Specification:
| Item of electro-optical characteristics | Symbol | Condition | Min. | Typ. | Max. | Unit |
| Response time | Tr+Tf | θ=0 ∅=0 Ta=25℃ | - | 25 | 40 | ms |
| Contrast Ratio | CR | - | 400 | - | - |
| Luminance uniformity | WHITE | - | 80 | - | % |
| Surface Luminance | Lv | - | 300 | - | cd/m2 |
| CIE (x, y) chromaticity | White | White x | θ=0 ∅=0 Ta=25℃ | - | 0.302 | - | - |
| White y | - | 0.338 | - |
| Red | Red x | - | 0.606 | - |
| Red y | - | 0.325 | - |
| Green | Green x | - | 0.303 | - |
| Green y | - | 0.567 | - |
| Blue | Blue x | - | 0. 147 | - |
| Blue y | - | 0. 161 | - |
| Viewing angle range | ∅=90(12 o’clock) | CR ≥ 10 | - | 80 | - | deg |
| ∅=270(6 o’clock) | - | 80 | - | deg |
| ∅=0(3 o’clock) | - | 80 | - | deg |
| ∅=180(9 o’clock) | - | 80 | - | deg |
| NTSC ratio | - | - | - | 50 | - | % |
Connection Examples:

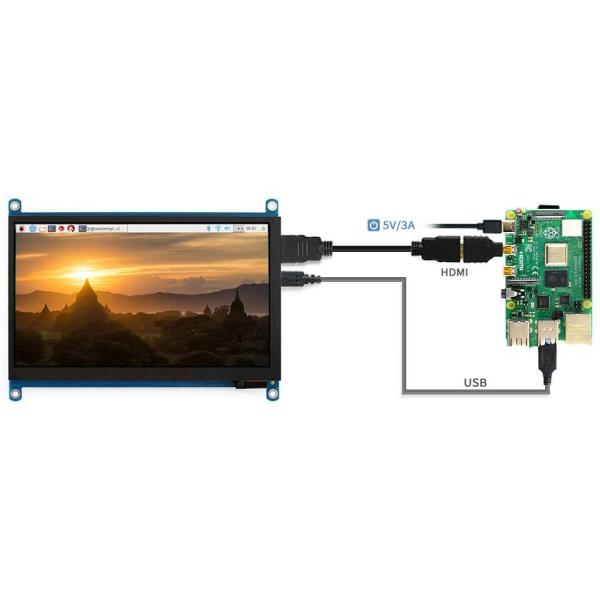

Working With Raspberry Pi 4
Working With Raspberry Pi 3B+
Working With Raspberry Pi Zero W
Working With AI Computer Jetson Nano
Working With Mini PC
Display:IPS Panel
Handling Precautions:
1.Do not leave the module operation or storage in Strong light . Strong light exposure causes degradation of polarizer and color filter.
2.Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that treatment persons are connected to ground through wrist band etc.
3.Do not connector or disconnect the cable to/from the Module at the “Power On” Condition.
